Jiaoshan Islands

  • JIAOSHAN ISLANDS,
    CHINA
  • Client
    Taihu Bay Real Estate Company
  • Gross Area
    43125m² for the Hotel
  • Architect
    studio505
  • Environmental Engineer
    Atelier 10
  • Water Cycle Consultants
    Eco Harvest

studio505 were asked to design a sustainable eco resort by the Taihu Bay Real Estate Company, China. To be located on the Jiaoshan Islands, the development represents a unique opportunity for the people of Jiangsu. Developing a sustainable, carbon neutral and net energy zero style resort on the location while focusing the attention of the development on the opportunity to rehabilitate the waters of Taihu in general will help to improve the livelihood, wealth and health of the surrounding populations and communities.

The development is designed to reveal itself as a series of new hilltops, nestled between the two islands, connecting them to each other and to the greater lake. The architecture of the circular marina creates a new centre between the islands, where they currently kiss. The principal driver for the form has been the creation of place; the current marina has been expanded to a generous and exciting circular enclosure with a building in the form of a rounded hill. Circular motifs recur through scales, from the 200m marina, to the collection of reed beds and pools strung like beads around the interior of the water.

505工作室被常州太湖湾房地产开发有限公司委托设计一座可持续发展生态度假村。度假村位于太湖湾椒山岛,为当地居民带来了一次独特的发展机会。 项目旨在太湖湾发展一座可持续性、碳中性并且净耗能为零的生态度假村,同时项目将发展重心建立在改善太湖湾整体水域的水质问题以及优化周边居民社区的生活环境,质量和健康等问题上。

整个开发项目被设计成一系列的山丘形态-坐落于两座岛屿间的建筑相互贯通并连接延伸至太湖。环形码头相互吻合的地段则巧妙形成了岛屿间的全新中心地带。建筑的形态是由场地的形成所推动主导的,而现有的码头则被扩展延伸成被平缓的山形建筑环绕包围的更加宏大和丰富的空间。根据规模的不同,环形主题贯穿整个项目-包括200米的码头,在水面上串起的芦苇浮床和泳池等等。

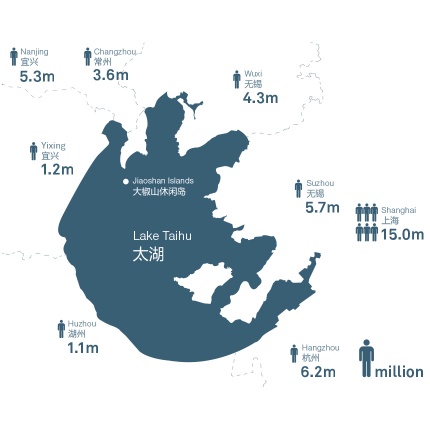

Lake TaihuLake Taihu

A sustainable, carbon neutral
and net energy zero style resort. Focusing the attention of the development on the opportunity to rehabilitate the waters of Lake Taihu.



椒山岛项目是一座可持续性、碳中性并且净耗能为零形式的生态度假村。发展重心是改善太湖湾整体水域的水质问题。

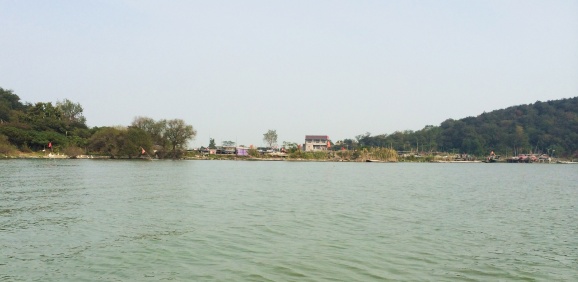

Lake Taihu Site PhotographsLake Taihu Site Photographs
Lake Taihu Site PhotographsLake Taihu Site Photographs

The development is designed to reveal itself as a series of new hilltops, nestled between the two islands, and connecting them to each other and to the greater lake.

整个开发项目被设计成为一系列的山丘形态-坐落于两座岛屿间的建筑相互贯通并连接延伸至太湖。


Activities MapActivities Map

The two main peaks of the
Jiaoshan Islands and the form
of the trailing landmasses has
been the inspiration for the
formal response.

椒山岛上的两座主峰以及陆地拖曳的形态是对设计灵感的自然回应。



Massing Development 1Massing Development 1
Massing Development 2Massing Development 2
Massing Development 3Massing Development 3

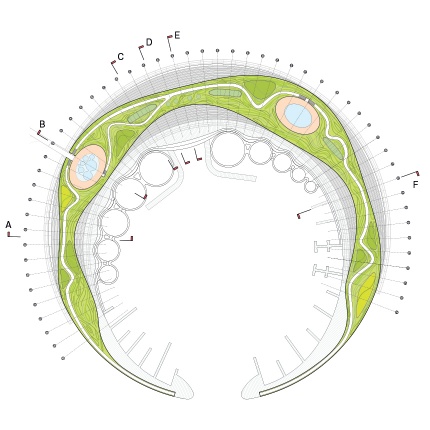

Hotel Roof PlanHotel Roof Plan

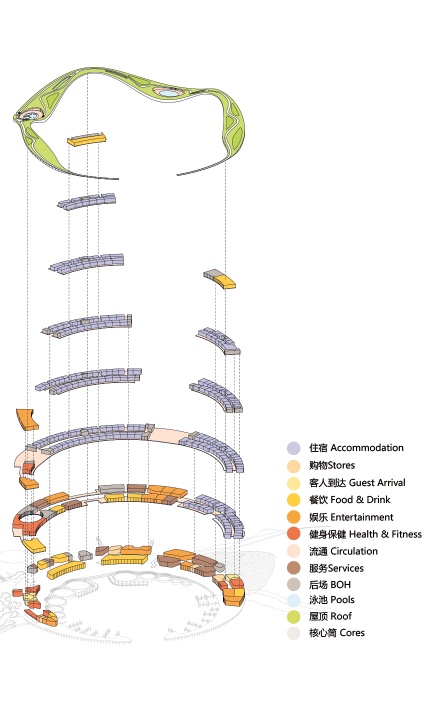

Program AxonometricProgram Axonometric

These islands are covered in significant vegetation -
ranging from forested woods, through to established fruit
orchards terraced through
the island.

这些岛屿被茂盛的植被覆盖-包括繁密的森林,到人工开垦的果园和梯田等等。在椒山岛度假村开发的过程中每一种景观都将得到相应的保护、加强和完善。


Hotel SectionHotel Section
Interior AtriumInterior Atrium

Section SketchSection Sketch

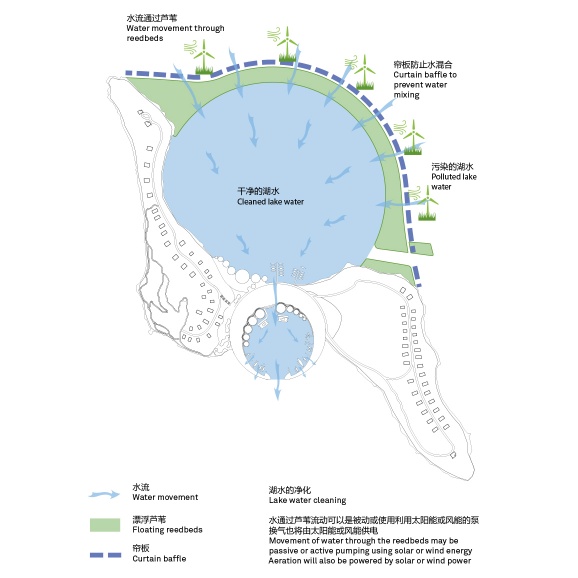

Water Treatment DiagramWater Treatment Diagram

Lake Taihu currently has some severe issues with algae blooms and the central government, through the Ministry of Environmental Protection, is going to great lengths to clean up Taihu over the next 5 years. Developments close to the Lake are now closely monitored to ensure that they are not going to contribute additional pollutants into the Lake Taihu Ecosystem.

Jiaoshan Island Resort is surrounded by the waters of Lake Taihu. These waters are often polluted and are the source of drinking water for most developments on the lake including the major city of Wuxi. A sustainable water management strategy on the island is therefore vital and crucial to the success of a resort development on the Island to ensure continued water supply and maintain good water quality surrounding the island.

太湖湾目前正面临严重的水体营养化问题。在未来的5年中,中央政府以及环境保护部门将不遗余力地对太湖水质问题进行大力的控制和清理工作。目前,靠近太湖水域的发展被密切监测以保证不会导致更多的污染物排入太湖中影响当地生态系统。

椒山岛度假村坐落于太湖水域之中。这些水体往往已被污染,并且是太湖周边大多数发展项目,包括周边主要城市无锡市的饮用水来源。对于椒山岛来说,成功的项目开发意味着能够确保岛上的持续供水并维持周边水域良好的水质。因此,一个可持续的水源管理策略对是至关重要的。


Floating Reed BedsFloating Reed Beds
Lake Taihu Algae BloomsLake Taihu Algae Blooms

The sustainable water strategy for Jiaoshan revolves around water use reduction measures. The water from roof, rain and wastewater treatment is reused. Through smart reed bed and anaerobic technology, Jiaoshan Island Resort sets about cleaning the entire lake while creating energy in the form of bio gas at same time.

椒山岛可持续的水策略是围绕减少用水量的措施开展的。收集来自屋顶,雨水和被处理过的污水并进行重新利用。 通过智能芦苇浮床和厌氧技术,椒山岛度假村在进行清理整个湖区的工作同时能够产生生物气体(沼气)并以此种形式进行能源共给。


Water Cycle SectionWater Cycle Section
